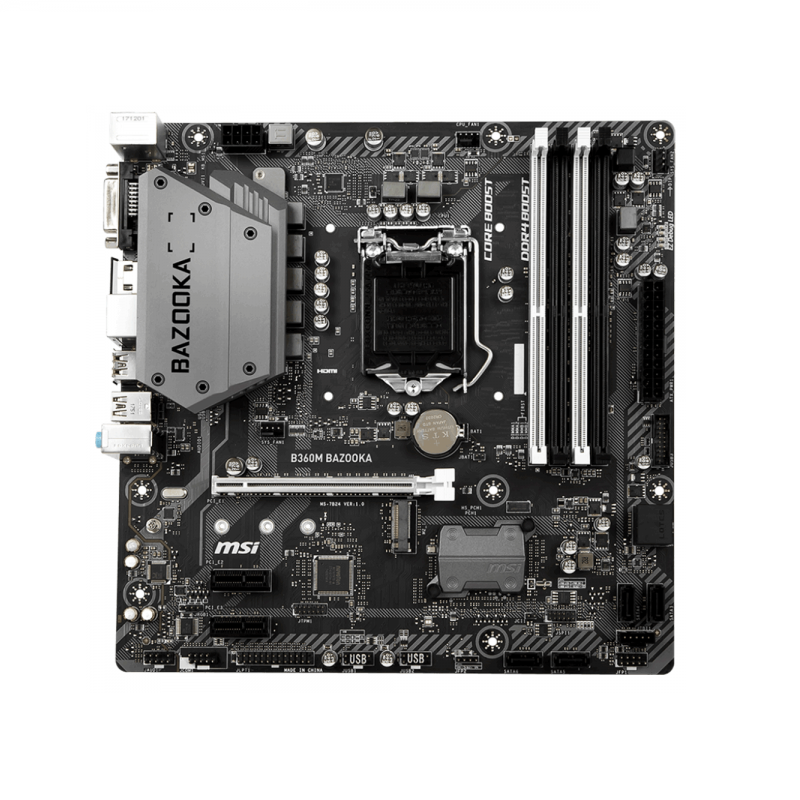

Main MSI B360M Bazooka socket 1151 V2

Tên gọi

MSI B360M BAZOOKA

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors

Chipset / Socket

Intel® B360

Bộ nhớ (RAM)

• 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

• Dual channel memory architecture

• Support for DDR4 2666/2400/2133 MHz memory modules

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

Công nghệ đa GPU

• AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Khe cắm mở rộng

• 1 x PCI Express x16 slot, running at x16

• 2 x PCI Express x1 slots

LAN / Wireless

• Realtek 8111H Gigabit LAN controller

Âm thanh

• Dual Realtek® ALC887 Codec

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 6 x SATA 6Gb/s connectors

• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

• 1 x 4-pin CPU fan connector

• 2 x 4-pin system fan connectors

• 1 x Front panel audio connector

• 1 x Parallel port connector

• 1 x Serial port connector

• 2 x Front panel connectors

• 1 x TPM module connector

• 1 x Chassis Intrusion connector

• 1 x Thunderbolt add-on card connector

• 1 x RGB LED connector

• 1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

• Mouse and Keyboard Port

• LAN Port

• USB 3.1 Gen1 Type A

• HD Audio Connectors

• DVI-D Port

• HDMI Port

• USB 2.0 Port

• USB 3.1 Gen1 Type C

Phụ kiện đi kèm

• Bộ phụ kiện tiêu chuẩn của MSI

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• mATX Form Factor
