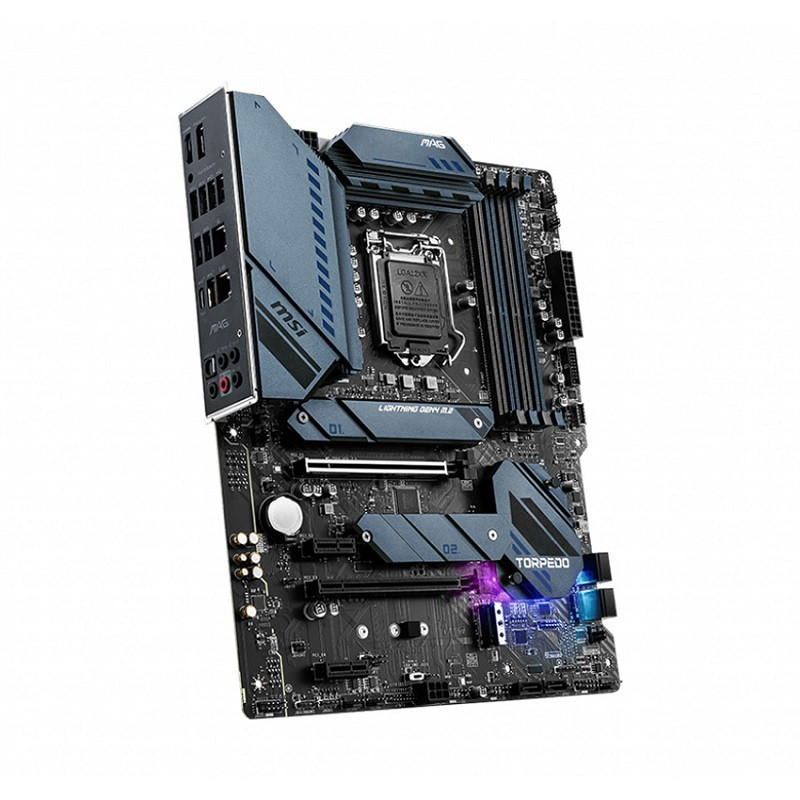

Main MSI Z590 Torpedo Socket 1200 ATX

Trong kho: Còn hàng
Bảo hành: 3 tháng

Hàng chính hãng đã qua sử dụng

Nguyên bản 100%, đẹp keng

Socket 1200, kích thước ATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: 2 x PCI-E X16, 2 x PCI-E X1

Khe cắm ổ cứng: 6 x SATAIII, 3 x M.2 SLOT

Giá bán: 2.500.000 VNĐ

Mua hàng

Sản phẩm chính hãng
Giao hàng siêu tốc
Giá ưu đãi nhất
Hỗ trợ 24/7

Ưu đãi và khuyến mãi:

Cam kết hàng chính hãng 100%!

Bảo hành dài hạn, 1 đổi 1 siêu tốc!

Miễn phí lắp đặt, vệ sinh máy tính!

Đặc điểm nổi bật
Bình luận

Đặc điểm nổi bật

Mainboard MSI MAG Z590 TORPEDO

Loại sản phẩm	Bo mạch chủ MSI
Model	MAG Z590 TORPEDO
CPU hỗ trợ	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200
Chipset	Intel^® Z590 Chipset
RAM hỗ trợ	4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng	2x PCIe x16 slots 1x PCIe 3.0 x16 slot (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 (From Z590 chipset) Support up to PCIe 3.0 x4 2x PCIe 3.0 x1 slots (From Z590 chipset)
Hình ảnh	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Đa card màn hình	Supports 2-Way AMD® CrossFire™ Technology
Lưu trữ	6x SATA 6Gb/s ports (From Z590 chipset) 1 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_3 2 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready 3 Supports Intel® Smart Response Technology for Intel Core™ processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	Intel® Z590 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Âm Thanh	Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Intel® I225-V 2.5Gbps LAN controller 1x Intel® I219-V 1Gbps LAN controller
Cổng kết nối (I/O bên trong)	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
Cổng kết nối (I/O Phía sau)	DisplayPort USB 2.0 Gigabit LAN Port 2.5G LAN Port HD Audio Connectors HDMI Flash BIOS Button USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Kích cỡ	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Lỗ bắt ốc	9 mounting holes
