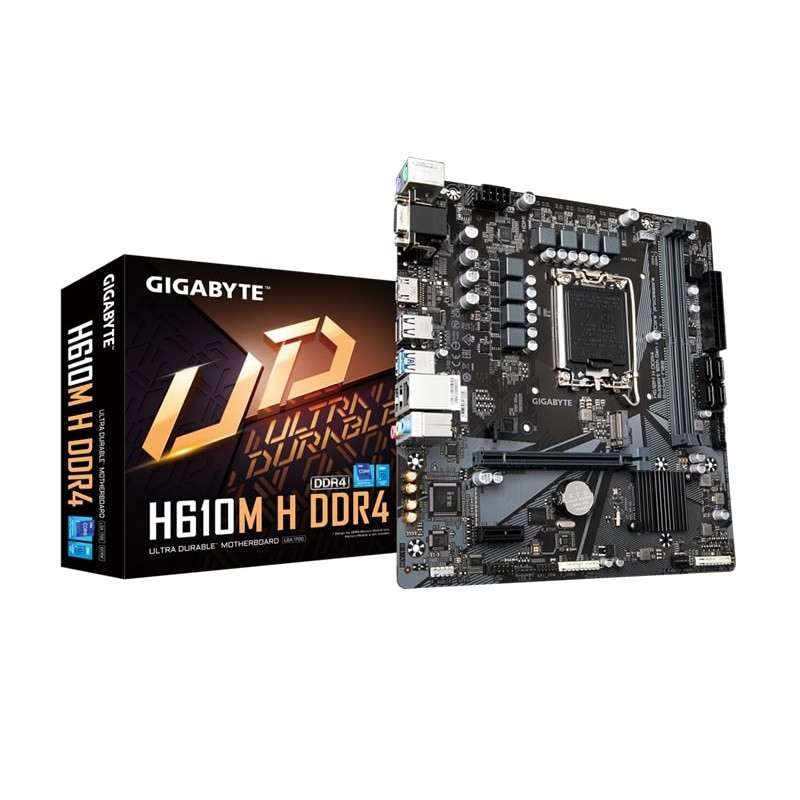

Main Giga H610M H DDR4 socket 1700

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

H610M H DDR4

CPU hỗ trợ

Intel

Chipset

H610

RAM hỗ trợ

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot

Ổ cứng hỗ trợ

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 4 x SATA 6Gb/s connectors
5. 1 x CPU fan header
6. 2 x system fan headers
7. 1 x RGB LED strip header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x HDMI 2.0 port
5. 2 x USB 3.2 Gen 1 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks

LAN / Wireless

1. Intel® GbE LAN chip (1 Gbps/100 Mbps)

Kích cỡ

1. Micro ATX Form Factor; 23.0cm x 21.5cm
